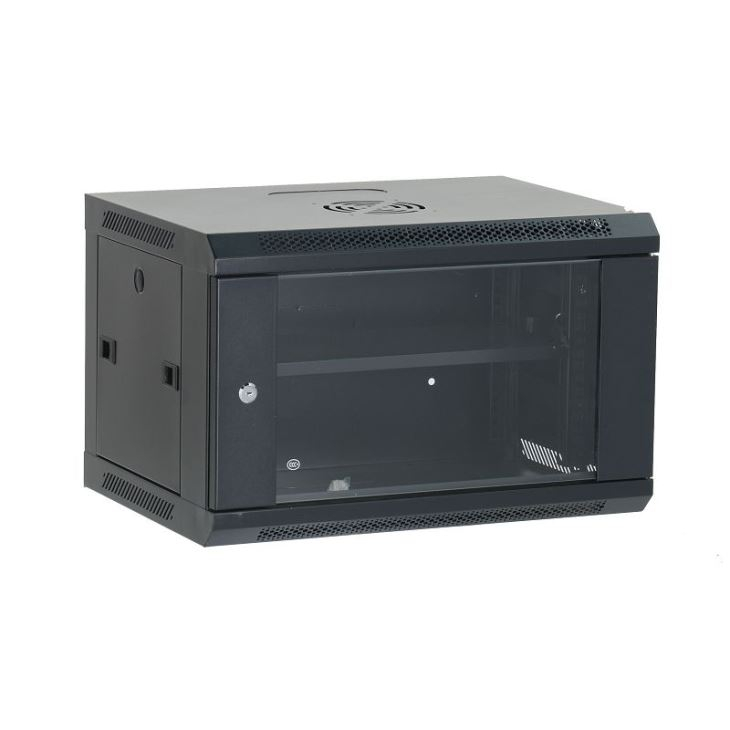

High Quality Welded Structure 9U Wall Cabinet

The WZ-Series Wall Mount Enclosures are designed to provide you with a professional quality network installation at a value price, welded structure improves load bearing capacity and stability which they can fit your EIA compliant 19" rack mountable equipment properly and securely.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Model Number: WZ Series WZ6406

  • Standard:

  • Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, DIN41494 part 7, GBIT3047.2-92 standard.

  • Front door: Tempered Glass Door

  • Quick Details

    Place of Origin: Beijing, China Width: 600mm
    Brand Name: FINEN Front Door: 5mm Thickness Tempered Glass door
    HS Code: 8473309000 Removable side panels
    Model Number: WZ Series Thickness: Mounting Profile 2.0mm; Mounting Angle 1.2mm
    Material: High Quality Cold Rolled Steel Top Open Brackets For Cable And Wire Access
    Degree of Protection: IP20 Loading Capacity: 60kgs (Static)
    Type: Weld structure Network Cabinet Optional Accessories: Fans, shelf, PDU, cable manager, and others
    Capacity: 4U/6U/9U/12U15U/18U Packing: Firm carton / Assembly packing only
    Color: Black, Gray, White Package Include: 1 X Network Cabinet, 1 Set Of Keys, Some Screws.
    Installation: 19" installation Shipping: Sea, Air, Train, Truck
    Depth: 450mm/600mm Application: Server room


Product Size:

Model No. Capacity Width Depth Height Packing dimension Volume
(U) (mm) (mm) (mm) (mm) (CBM)
WM.6404 4 600 450 280 635*485*160 0.049
WM.6604 600 635*635*230 0.093
WM.6406 6 600 450 368 635*485*160 0.049
WM.6606 600 635*635*230 0.093
WM.6409 9 600 450 501 635*485*235 0.072
WM.6609 600 635*635*231 0.093
WM.6412 12 600 450 635 665*595*236 0.093
WM.6612 600 665*635*231 0.098
WM.6415 15 600 450 769 635*940*98, 802*460*132 0.137
WM.6615 600 635*757*236 0.113
WM.6418 18 600 450 901 635*940*98, 935*460*132 0.137
WM.6618 600 935*630*236 0.139

微信图片_2025-08-22_163049_249

微信图片_2025-08-22_163701_845微信图片_2025-08-22_163731_308微信图片_2025-08-22_163753_995微信图片_2025-08-22_163816_996微信图片_2025-08-22_163836_813

Exquisite design with precise dimensions and craftsmanship

Easy installation;

Mounts to wall or rolls on floor with optional caster kit

Saves Valuable Workspace

Top cover is available to fans.

Optional locks for side panels

Zinc Plated mounting profile

Meet IP20 Protection Grade

Secure, firm and reliable

Houses EIA-standard 19 in. rack equipment in 6U of space

Excellent Air Ventilation Design with AC 120mm Cooling Fans

Three Ways, Top, Bottom, and Rear Cabling Tunnels

Easy to install and maintain

Certification: ISO 9001: 2000

OEM service available

Fans and PDU are optional

Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way


Product Description---What we produce

1.Wall Mounted Rack

- glass front door(removable)

- side panel with handy latches or locks

- flat packing is available

2.Floor Standing Rack

- Model - AS Glass front door,mesh rear door

- Model - A3 Mesh front and rear door

- Model - H1 Hexagonal mesh doors,welded with section bar frame

- Model - H2 Nine-folded frame

- Model - H3 Arc hexagonal mesh doors,welded with section bar frame,two section side panel

3.OEM Service and customized products
