Model Number: WMG Series WMG6606
Standard:
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, DIN41494 part 7, GBIT3047.2-92 standard.

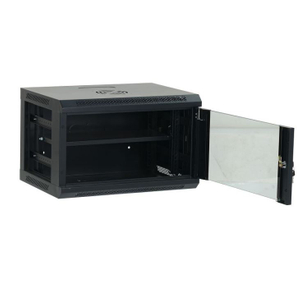

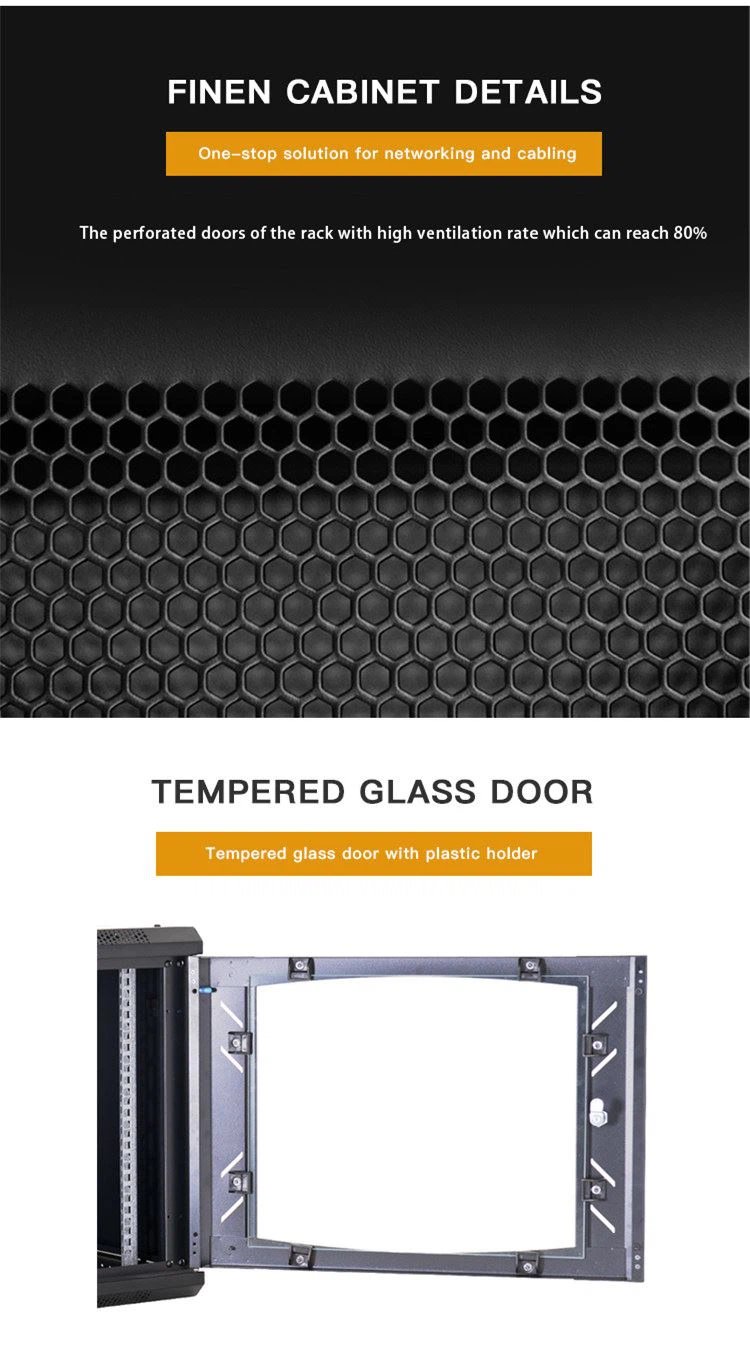

Front door: Tempered Glass Door

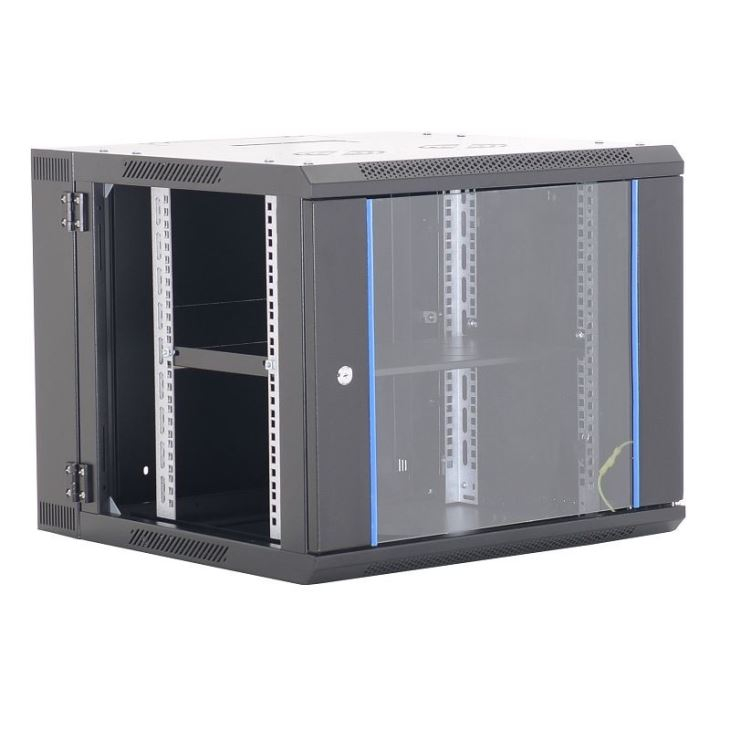

General description of Double Sectioned 19" Data / Comms / Network rack mount wall cabinet

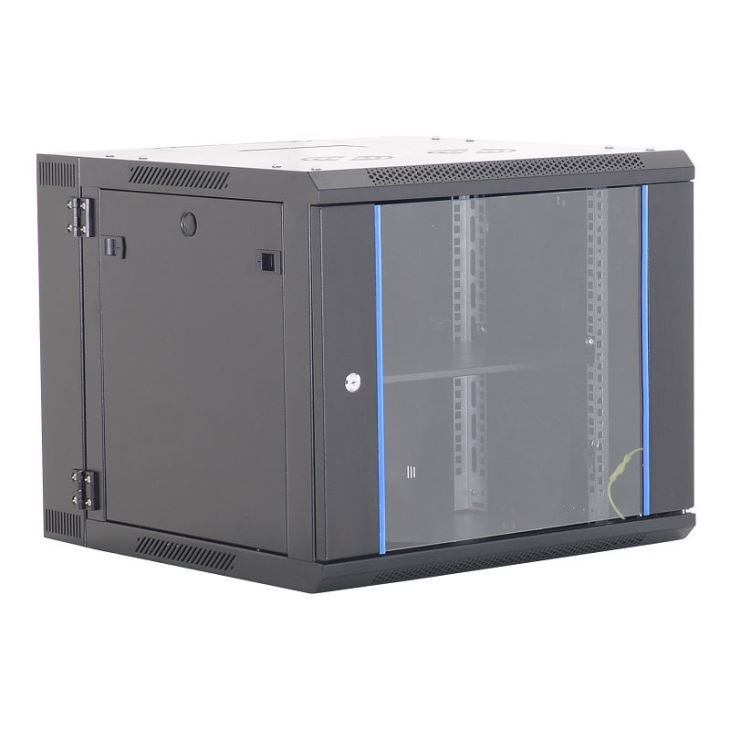

1. Tempered glass front door;
2. 100mm Width for Back Swing Panel

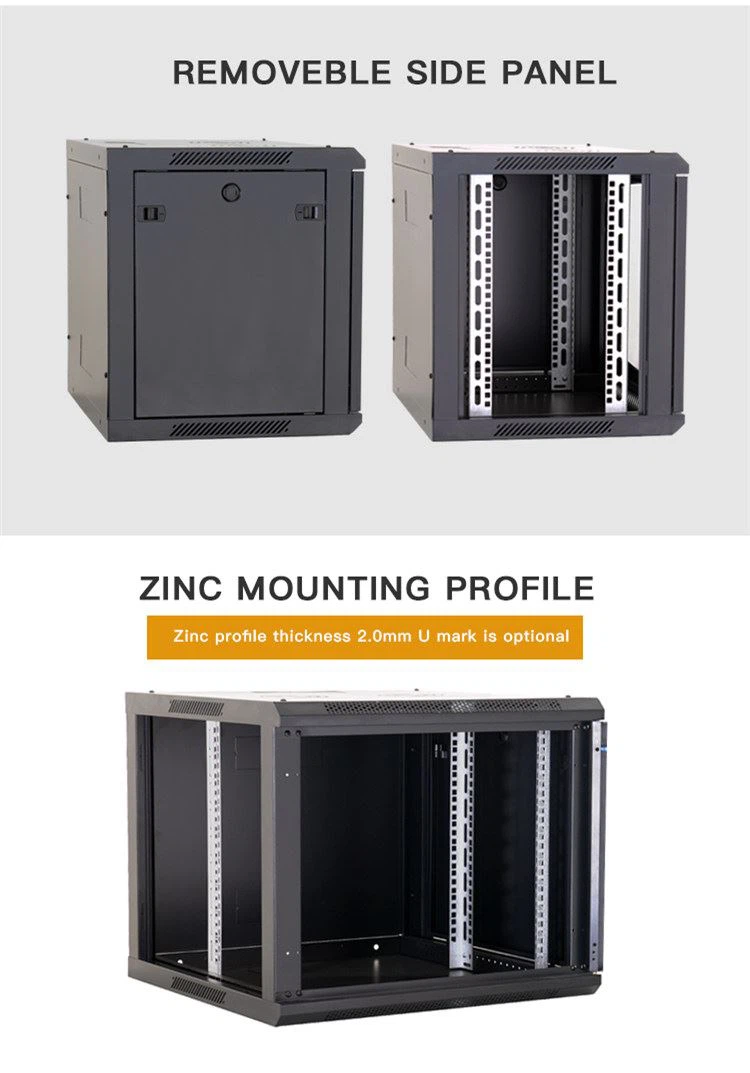

3. Removable side panels with lock optional
4. Weld frame for stable structure
5. Cable entry from top and bottom
6. PDU Fans or other accessories are optional
Features and inclusions
Zinc Plated mounting profile
Meet IP20 Protection Grade
Supplied fully assembled or unassembled
Constructed from High-quality Cold-rolled Steel
Reversible Front Door
Excellent Air Ventilation Design with 2-way Ceiling Mount Fan Kit (Fans are Optional)
6-way Rack Mount Power Rail (Optional)

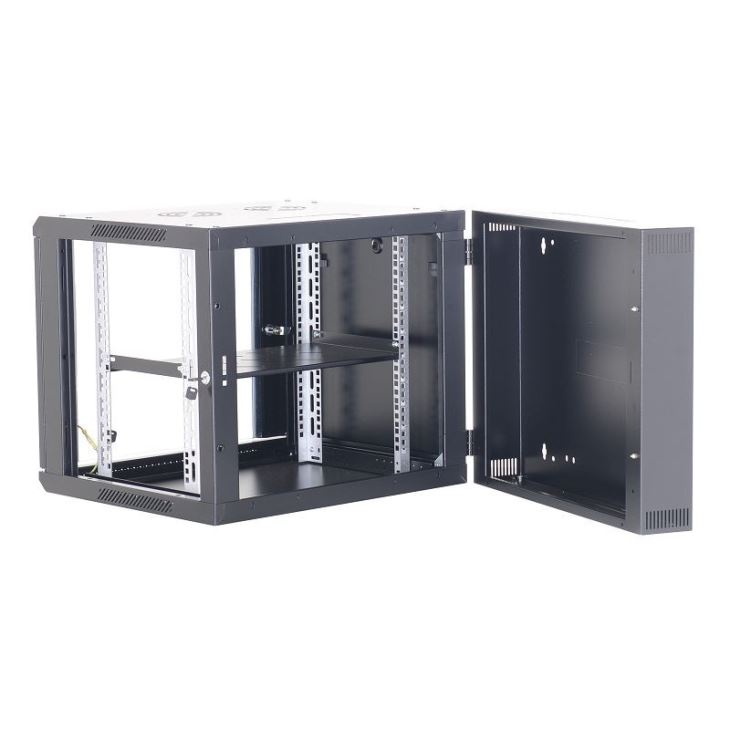

Hinged swing frame enclosure with Reversible Drop Hinge
Adjustable 19" L Rails Front and Rear of Cabinet with U Marking

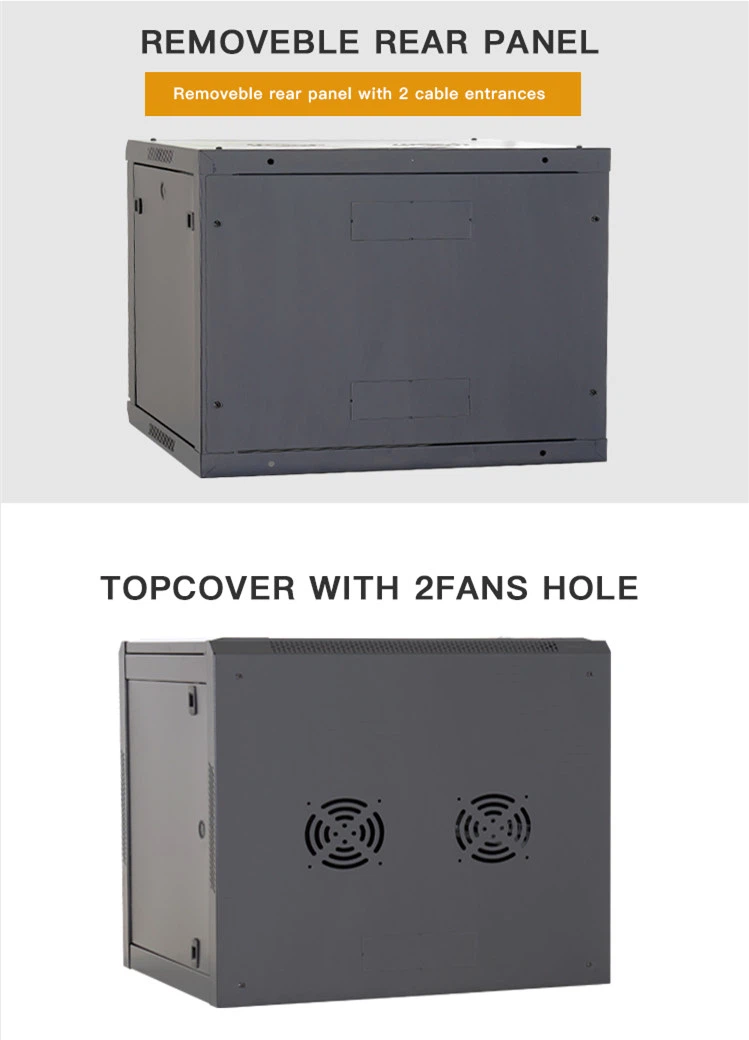

Three Ways, Top, Bottom, and Rear Cabling Tunnels
Easy to install and maintain
Certification: ISO 9001: 2000
Secure, firm and reliable
OEM service available
10 Sets of Cage Nuts
Loading Capacity 60kg
3-year Warranty
Quick Details
| Place of Origin: Beijing, China | Depth: 550mm/600mm |
| Brand Name: FINEN | Width: 600mm |
| HS Code: 8473309000 | Front Door: 5mm Thickness Tempered Glass door |
| Model Number: WMG Series | Thickness: Mounting Profile 2.0mm; Mounting Angle 1.2mm |
| Material: High Quality Cold Rolled Steel | Top Open Brackets For Cable And Wire Access |
| Degree of Protection: IP20 | Loading Capacity: 60kgs (Static) |
| Type: Double sections wall network cabinet | Packing: Export Cartons or Pallet if it is necessary. |
| Height: 4U&6U&9U&12U&15U&18U | Package Include: 1 X Network Cabinet, 1 Set Of Keys, Some Screws. |
| Color: Black, Gray, White |
Product Size:
| Model No. | Capacity | Width | Depth | Height | Packing dimension | Volume |
| (U) | (mm) | (mm) | (mm) | (mm) | (CBM) | |
| WMG.6504 | 4 | 600 | 450+100 | 280 | 635*485*330 | 0.1016 |
| WMG.6604 | 500+100 | 635*535*330 | 0.1121 | |||
| WMG.6506 | 6 | 600 | 450+100 | 368 | 635*485*330 | 0.1016 |
| WMG.6606 | 500+100 | 635*535*330 | 0.1121 | |||
| WMG.6509 | 9 | 600 | 450+100 | 501 | 635*535*330 | 0.1121 |
| WMG.6609 | 500+100 | 635*535*330 | 0.1121 | |||
| WMG.6512 | 12 | 600 | 450+100 | 635 | 625*670*290 | 0.1214 |
| WMG.6612 | 500+100 | 635*670*290 | 0.1214 | |||
| WMG.6515 | 15 | 600 | 450+100 | 769 | 635*800*290 | 0.1473 |
| WMG.6615 | 500+100 | 635*800*290 | 0.1473 | |||
| WMG.6518 | 18 | 600 | 450+100 | 901 | 635*935*290 | 0.1722 |
| WMG.6618 | 500+100 | 635*935*290 | 0.1722 |
