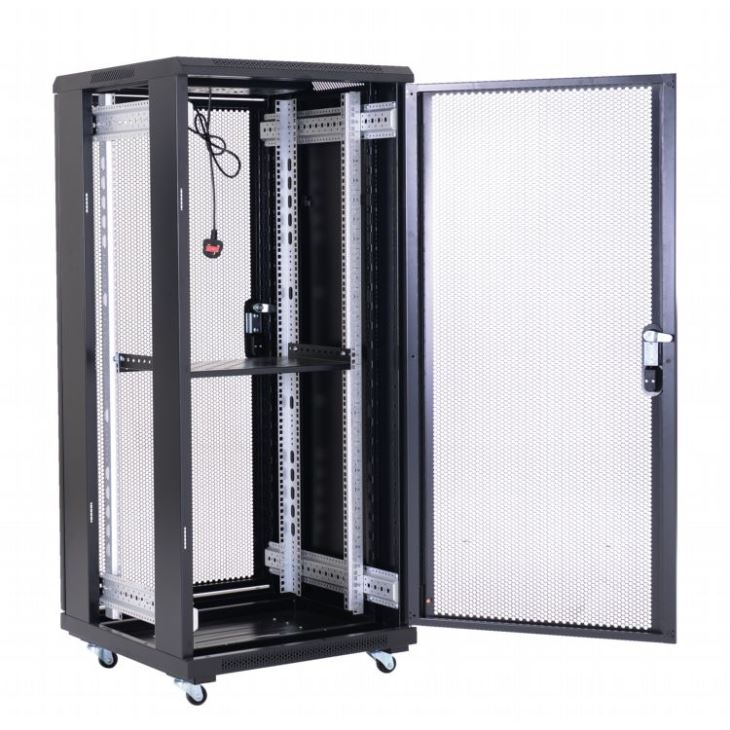

Perforated Metal Mesh Door Cabinet Rack

Perforated metal mesh door cabinet rack is a combination of hardware structures designed to accommodate technical equipment including routers (routers), switches circuits (switches), hubs, storage devices (UPSs), cables and, of course, servers.


Availability:



Inquire Add to Basket

Model Number: A3 Series A36627
Standard:
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, DIN41494 part 7
Front door: Perforated Metal Mesh Door

Quick Details

Beijing, China	Depth	600mm/800mm/1000mm
Brand Name	FINEN	Width	600mm/800mm
HS Code	8.47E+09	Front Door	Single flat tempered glass door
Model Number	AS Series	Rear Door	Single flat perforated metal mesh rear door
Material	SPCC Cold Rolled Steel	Mounting Profile	Galva clean Al-Zn coated steel plate-2.0mm
Degree of Protection	IP20	Loading Capacity	800kgs(=1763lbs)
Type	Network Cabinet	Optional Accessories	Fans, shelf, PDU, cable manager, and others
Capacity	18U/22U/27U/32U/ 37U/42U/47U	Packing	Unassembly or assembly packing
Color	Black, Gray, White	Shipping	Sea, Air, Train, Truck
Installation	19" installation

Product Size:

Width	Depth	Height	Volume
(U)	(mm)	(mm)	(mm)	(CBM)
A3.6618	18	600	600	988	0.131
A3.6818			800		0.152
A3.6018			1000		0.182
A3.8818		800	800		0.212
A3.8018		800	1000		0.24
A3.6622	22	600	600	1165	0.146
A3.6822			800		0.169
A3.6022			1000		0.202
A3.8822		800	800		0.238
A3.8022		800	1000		0.267
A3.6627	27	600	600	1388	0.166
A3.6827			800		0.189
A3.6027			1000		0.227
A3.8827		800	800		0.268
A3.8027		800	1000		0.299
A3.6632	32	600	600	1610	0.186
A3.6832			800		0.211
A3.6032			1000		0.252
A3.8832		800	800		0.301
A3.8032		800	1000		0.333
A3.6637	37	600	600	1833	0.229
A3.6837			800		0.265
A3.6037			1000		0.315
A3.8837		800	800		0.364
A3.8037		800	1000		0.405
A3.6642	42	600	600	2055	0.248
A3.6842			800		0.285
A3.6042			1000		0.339
A3.8842		800	800		0.394
A3.8042		800	1000		0.437
A3.6647	47	600	600	2277	0.291
A3.6847			800		0.339
A3.6047			1000		0.402
A3.8847		800	800		0.457
A3.8047		800	1000		0.509
