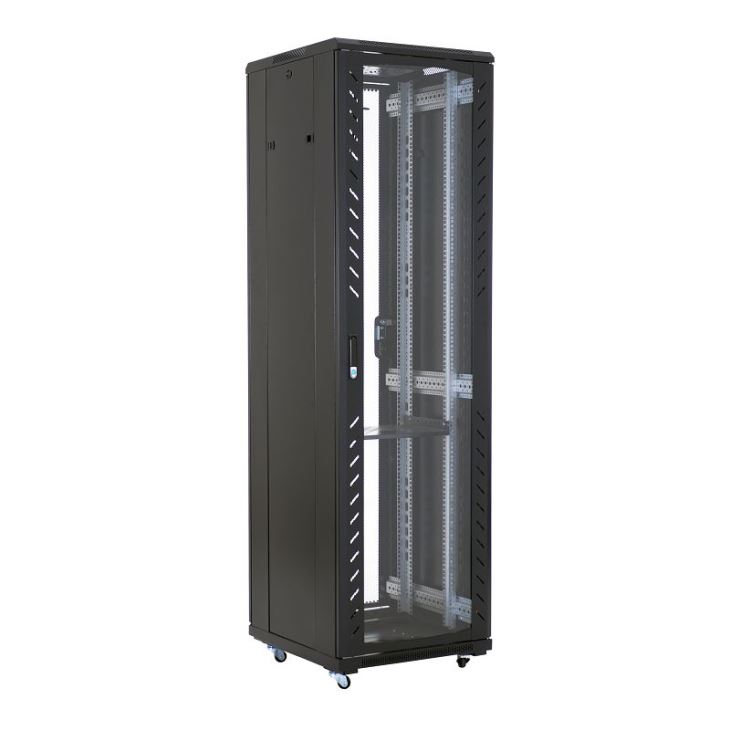

Economic Tempered Glass Door Network Cabinet

Economic tempered glass door network cabinet is a cost-effective data management solution for installers and customers with lockable tempered glass front door, solid lockable steel side & back doors and economic price.


Availability:



Inquire Add to Basket

Model Number: AS Series AS6642
Standard:
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, DIN41494 part 7, GBIT3047.2-92 standard.

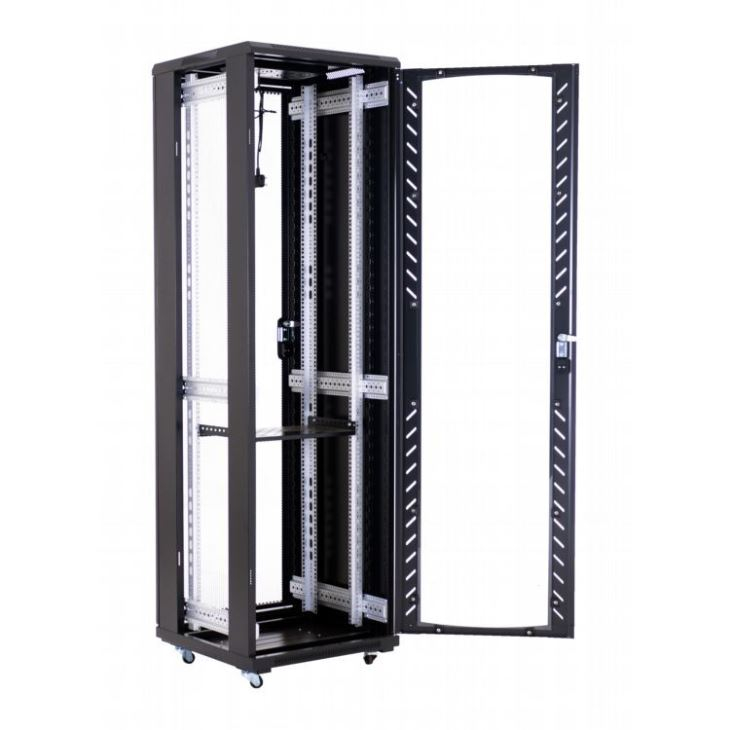

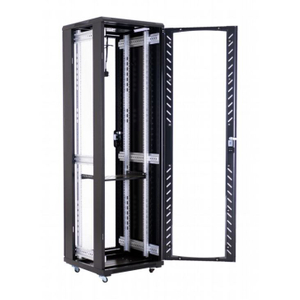

Front door: Temperd Glass Door
Thickness:
Mounting profiles:2.0mm;
Other enclosures:1.2mm

Quick Details

Place of Origin: Beijing, China	Width: 600mm/800mm
Brand Name: FINEN	Front Door: Single flat tempered glass door

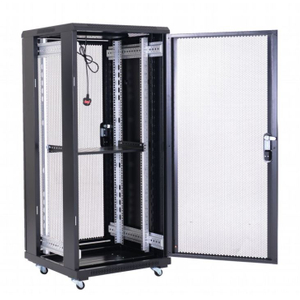

HS Code: 8473309000	Rear Door: Single flat perforated metal mesh rear door

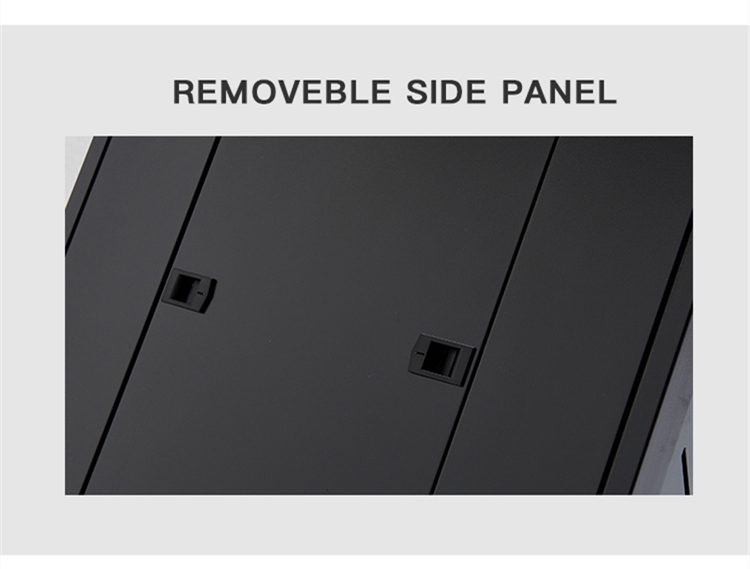

Model Number: AS Series	Side panels: Removable with Easy Handy Latches
Material: SPCC High-quality Cold Rolled Steel	Mounting Profile: Adjustable 19" L rails front & rear of server rack with “U” mark
Degree of Protection: IP20	Loading Capacity: 800kgs(=1763lbs)
Capacity/Rack Units: 18U&22U&27U&32U&37U&42U&47U	Accessories: 120mm AC cooling fans

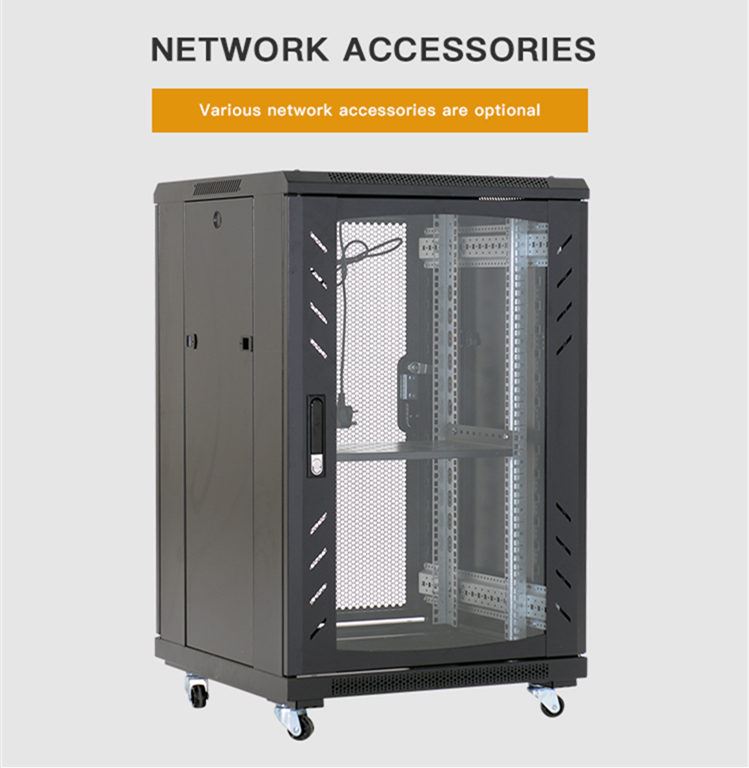

Color: Black-RAL9004; White-RAL7035; Grey-RAL7032	Optional Accessories: Shelves; PDU; Cable management;
Installation: 19" installation	Packing: Unassembly or assembly packing optional
Depth: 600mm/800mm/1000mm	Shipping: Sea, Air, Train, Truck.

Product Size:

Model No.	Capacity	Width	Depth	Height	Volume
Model No.	(U)	(mm)	(mm)	(mm)	(CBM)
AS.6618	18	600	600	988	0.131
AS.6818			800		0.152
AS.6018			1000		0.182
AS.8818		800	800		0.212
AS.8018		800	1000		0.24
AS.6622	22	600	600	1165	0.146
AS.6822			800		0.169
AS.6022			1000		0.202
AS.8822		800	800		0.238
AS.8022		800	1000		0.267
AS.6627	27	600	600	1388	0.166
AS.6827			800		0.189
AS.6027			1000		0.227
AS.8827		800	800		0.268
AS.8027		800	1000		0.299
AS.6632	32	600	600	1610	0.186
AS.6832			800		0.211
AS.6032			1000		0.252
AS.8832		800	800		0.301
AS.8032		800	1000		0.333
AS.6637	37	600	600	1833	0.229
AS.6837			800		0.265
AS.6037			1000		0.315
AS.8837		800	800		0.364
AS.8037		800	1000		0.405
AS.6642	42	600	600	2055	0.248
AS.6842			800		0.285
AS.6042			1000		0.339
AS.8842		800	800		0.394
AS.8042		800	1000		0.437
AS.6647	47	600	600	2277	0.291
AS.6847			800		0.339
AS.6047			1000		0.402
AS.8847		800	800		0.457
AS.8047		800	1000		0.509
