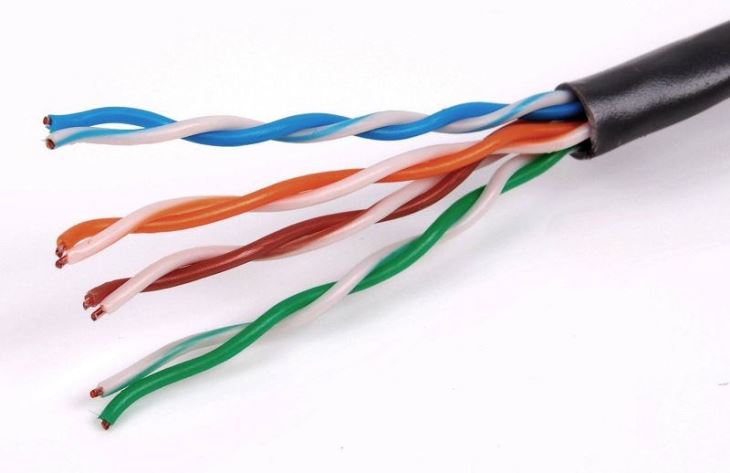

Description：Indoor UTP Cat5e Solid Network Cable
Conductor Size:24AWG | |
Conductor Structure:1/0.51mm | |
Conductor Material: Solid Bare Copper | |
Insulation Material: High Density Polyethylene (HDPE) | |
Insulation Diameter: 0.92 ± 0.03mm | |
Number of Conductors: 8 Conductors | |
Number of Pairs: : 4 Pairs | |
Outer Sheath Material: PVC | |
Outer Sheath Diameter: 5.2mm ± 0.2mm | |
Rip Cord:Optional |

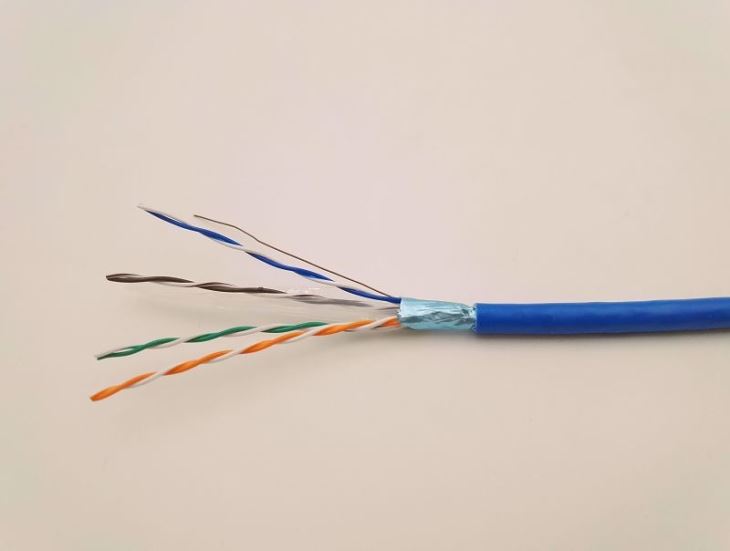

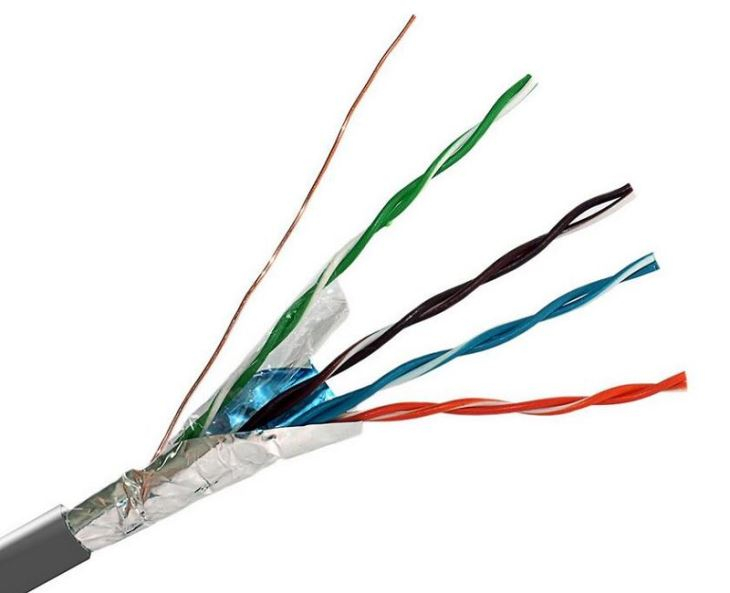

Description:Indoor FTP Cat5e Solid Network Cable
Conductor Size:24AWG | |
Conductor Structure:1/0.51mm | |
Conductor Material: Solid Bare Copper | |
Insulation Material: High Density Polyethylene (HDPE) | |
Insulation Diameter: 1.05 ± 0.05mm | |
Number of Conductors: 8 Conductors | |
Number of Pairs: : 4 Pairs | |
Warping Tape:Polyester Film | |
Drain Wire: 1*0.5mm Bare Copper / Tinned Copper | |
Shield Material：Al-Foil | |
Outer Jacket Material: PVC | |
Outer Jacket Diameter: 6.3mm ± 0.2mm | |
Rip Cord:Optional |

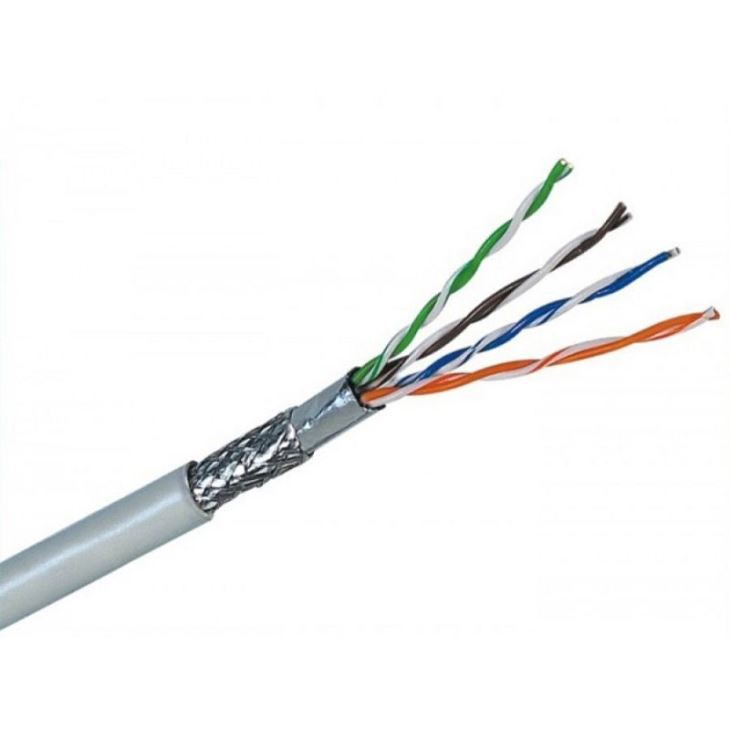

3. Description：Indoor S/FTP Cat5e Solid Network Cable
Conductor Size:24AWG |
|
Conductor Structure:1/0.51mm | |
Conductor Material: Solid Bare Copper | |
Insulation Material: High Density Polyethylene (HDPE) | |
Insulation Diameter: 1.05 ± 0.05mm | |
Number of Conductors: 8 Conductors | |
Number of Pairs: : 4 Pairs | |
Warping Tape:Polyester Film | |
Drain Wire: 1*0.5mm Bare Copper / Tinned Copper | |
Shield Material：Al-Foil | |
Braided Material:112*0.12mm Al-Mg wire | |
Outer Sheath Material: PVC | |
Outer Sheath Diameter: 6.5mm ± 0.2mm | |
Rip Cord:Optional |
4. Description:Outdoor S/FTP Cat5e Solid Network Cable
Conductor Size:24AWG |
Conductor Structure:1/0.51mm |
Conductor Material: Solid Bare Copper |
Insulation Material: High Density Polyethylene (HDPE) |
Insulation Diameter: 1.05 ± 0.05mm |
Number of Conductors: 8 Conductors |
Number of Pairs: : 4 Pairs |
Warping Tape:Polyester Film |
Drain Wire: 1*0.5mm Bare Copper / Tinned Copper |
Shield Material：Al-Foil |
Braided Material:112*0.12mm Al-Mg wire |
Outer Sheath Material: PVC |
Outer Sheath Diameter: 6.5mm ± 0.2mm |
Rip Cord:Optional |

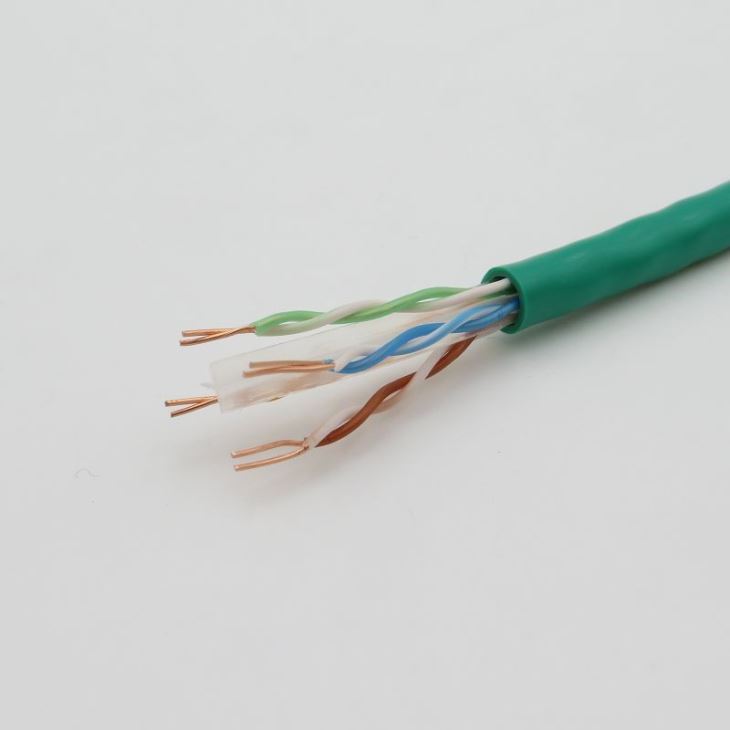

5. Description:Indoor UTP Cat6 Solid Network Cable
Conductor Size: 23AWG |
|
Conductor Structure:1/0.57mm | |
Conductor Material: Solid Bare Copper | |
Insulation Material: High Density Polyethylene (HDPE) | |
Insulation Diameter: 1.02 ± 0.03mm | |
Number of Conductors: 8 Conductors | |
Number of Pairs: : 4 Pairs | |
Cross:Seperator | |
Outer Sheath Material: PVC | |
Outer Sheath Diameter: 6.1mm ± 0.2mm | |
Rip Cord:Optional |
6. Description:Indoor FTP Cat6 Solid Network Cable
Conductor Size: 23AWG | |
Conductor Structure:1/0.57mm | |
Conductor Material: Solid Bare Copper | |
Insulation Material: High Density Polyethylene (HDPE) | |
Insulation Diameter: 1.15 ± 0.05mm | |
Number of Conductors: 8 Conductors | |
Number of Pairs: : 4 Pairs | |
Cross:Seperator | |
Warping Tape:Polyester Film | |
Shield Material:Al-Foil / Mylar | |
Drain Wire: 1*0.5mm Bare Copper / Tinned Copper | |
Outer Sheath Material: PVC | |
Outer Sheath Diameter: 7.6mm ± 0.2mm | |
Rip Cord:Optional |
7. Description:Indoor S/FTP Cat6 Solid Network Cable
Conductor Size:23AWG |
Conductor Structure:1/0.57mm |
Conductor Material: Solid Bare Copper |
Insulation Material: High Density Polyethylene (HDPE) |
Insulation Diameter: 1.15 ± 0.05mm |
Number of Conductors: 8 Conductors |
Number of Pairs: : 4 Pairs |
Cross:Seperator |
Warping Tape:Polyester Film |
Drain Wire: 1*0.5mm Bare Copper / Tinned Copper |
Shield Material ：Al-Foil |
Braided Material:112*0.12mm Al-Mg wire |
Outer Sheath Material: PVC |
Outer Sheath Diameter: 7.6mm ± 0.2mm |
Rip Cord:Optional |
8. Description:Outdoor S/FTP Cat6 Solid Network Cable
Conductor Size:23AWG |
Conductor Structure:1/0.57mm |
Conductor Material: Solid Bare Copper |
Insulation Material: High Density Polyethylene (HDPE) |
Insulation Diameter: 1.15 ± 0.05mm |
Number of Conductors: 8 Conductors |
Number of Pairs: : 4 Pairs |
Cross:Seperator |
Warping Tape:Polyester Film |
Drain Wire: 1*0.5mm Bare Copper / Tinned Copper |
Shield Material ：Al-Foil |
Braided Material:112*0.12mm Al-Mg wire |
Inner Sheath Material:PVC |
Inner Sheath Diameter:7.2mm ± 0.2mm |
Outer Sheath Material: PVC |
Outer Sheath Diameter: 8.4mm ± 0.2mm |
Rip Cord:Optional |
9. DescriptionIndoor U/FTP Cat6A Solid Network Cable
Conductor Size:23AWG |
Conductor Structure:1/0.57mm |
Conductor Material: Solid Bare Copper |
Insulation Material: High Density Polyethylene (HDPE) |
Insulation Diameter: 1.35 ± 0.05mm |
Number of Conductors: 8 Conductors |
Number of Pairs: : 4 Pairs |
Warping Tape:Polyester Film |
Shield Material:Al-Foil |
Drain Wire: 1*0.5mm Bare Copper / Tinned Copper |
Outer Sheath Material : PVC |
Outer Sheath Diameter: 7.6mm ± 0.2mm |
Rip Cord:Optional |
10. Description:Indoor S/FTP Cat6A Solid Network Cable
Conductor Size:23AWG |
Conductor Structure:1/0.57mm |
Conductor Material: Solid Bare Copper |
Insulation Material: High Density Polyethylene (HDPE) |
Insulation Diameter: 1.35 ± 0.05mm |
Number of Conductors: 8 Conductors |
Number of Pairs: : 4 Pairs |
Warping Tape:Polyester Film |
Drain Wire: 1*0.5mm Bare Copper / Tinned Copper |
Shield Material：Al-Foil / Mylar |
Braided Material:112*0.12mm Al-Mg wire |
Outer Sheath Material: PVC |
Outer Sheath Diameter: 7.6mm ± 0.2mm |
Rip Cord:Optional |
11. Description:Indoor S/FTP Cat7 Solid Network Cable
Conductor Size:23AWG |
Conductor Structure:1/0.57mm |
Conductor Material: Solid Bare Copper |
Insulation Material: High Density Polyethylene (HDPE) |
Insulation Diameter: 1.35 ± 0.05mm |
Number of Conductors: 8 Conductors |
Number of Pairs: : 4 Pairs |
Drain Wire: 1*0.5mm Bare Copper / Tinned Copper |
Shield Material：Al-Foil |
Braided Material:112*0.12mm Al-Mg / Tinned Copper |
Outer Sheath Material: PVC |
Outer Sheath Diameter: 8.0mm ± 0.2mm |
Rip Cord:Optional |
