Quick Details
Place of Origin:Guangdong, China
Brand Name:FINEN
Model Number:cat5/cat5e
Type:RJ45, Cat5e Cat6 Cat7 rj45 crystal plug
Application: network
Gender:Male
Product Name:RJ45 Crystal Head
cores:8p8c/6p4c/4p4c
Color:customized
Shielded:UTP/FTP
Gold plated:3u-50u
Pin:8pin RJ45 connector
Specification:
Machanical:fully compy with FCC standard
Cable to plug strength FCC standard
Durability:mating cycle 750 oprations
Electrical applications:250V AC maximum at 2A
Dielectric withstanding voltage:500V AC
Insulation resistance:100MΩ
Termination test:20MΩ maximum after environmental testing
Pitch:1.02mm
Currunt rating:1.5A
Insulation resistance:1000MΩ min
Materials:
Insulator:PC or PBT 30% G.F
Contact:cooper alloy, glod plating
Contact plated: glod flash,3u” Au, 6u” Au, 15u” Au, 30u” Au,
Features:

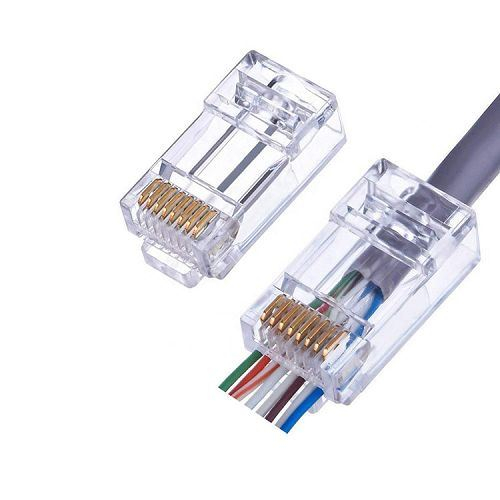

RJ45 Crystal Head
1. UTP FTP RJ45 Crystal Head
2. Low insertion loss,
3. High return loss
4. Standard:EIA/TIA 568A/568B
5. Shield: UTP/STP
Applications:
1. Type: 8P8C RJ45 Module Plug
2. Gender: Male
3. Gold Plated: FU 3U 6U 15U 50U ect
4. 8p8c/6p4c/4p4c RJ45 Crystal Head
5. CATV Network
6. Telecommunication System
More options:
CAT.5E UTP connector
CAT.5E FTP connector
CAT.6 UTP connector
CAT.6 FTP connector
Silvery CAT.6 FTP connector
Golden CAT.6 FTP connector
