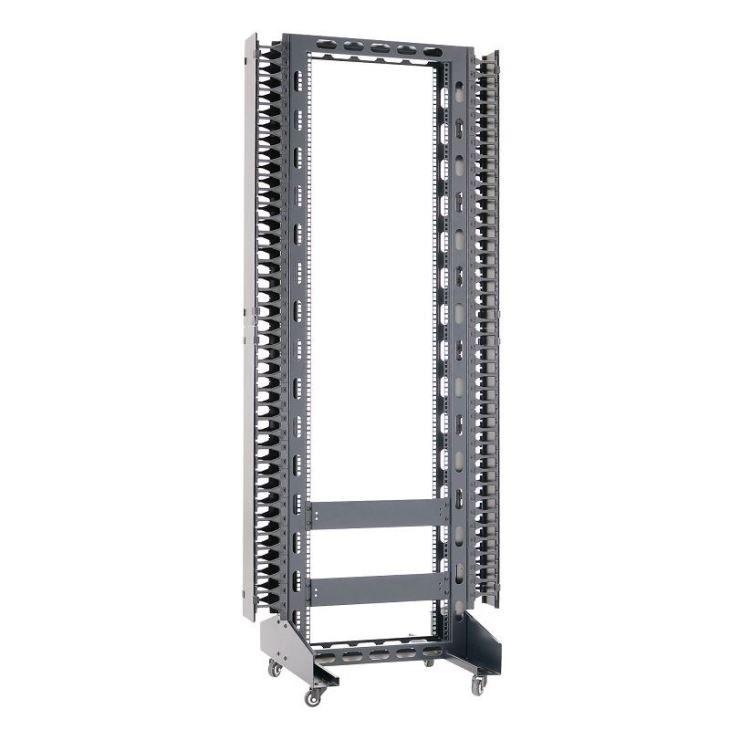

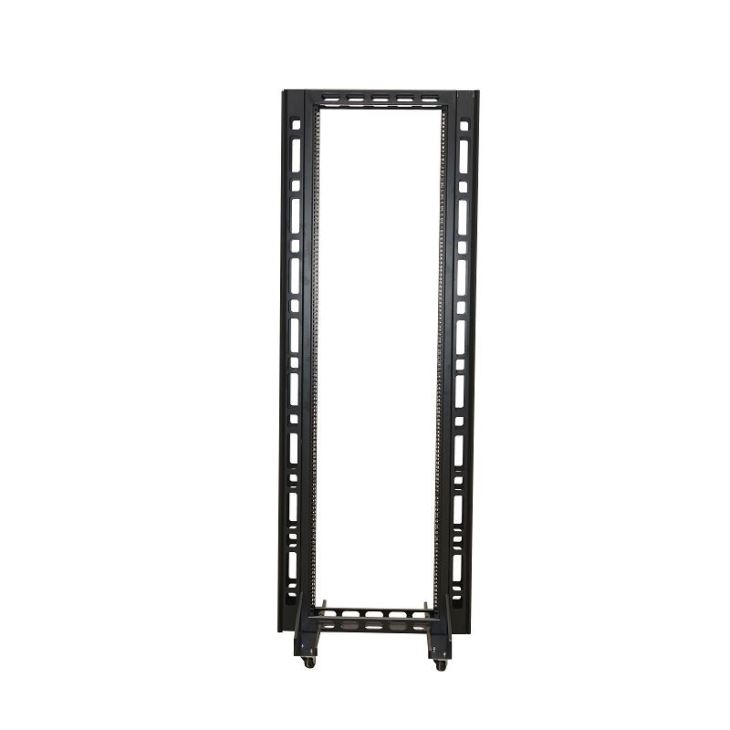

2-Post Open Rack

2-Post Open Rack, makes the rack saving floor space and its dual-post, open-depth design makes it broadly compatible with longer equipment. With casters included, you can easily move it around in your server room, office or studio. It's easy to re-position or relocate the rack in order to connect your rack-mounted equipment to other devices throughout your workspace.


Availability:



Inquire Add to Basket

Model Number: OR2 Series OR242
Standard:
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, DIN41494 part 7, GBIT3047.2-92 standard.
19'' Open rack with 2 posts
Can be bolted directly to floor
Have a small footprint that saves floor space

Features
1. Secure, firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
1). Assembly packing to save labour cost, ready to resell or use
2). Disassembly packing to save space and transport cost, easy to assemble
4. Certification: ISO 9001:2000 Ce Rohs
5. OEM/ODM service available

Applications of Network Cabinet
Protect and accommodate the servers
DVR, security equipment and Hubs
Patch panels, circuits switch for communication center
Data center systems and PABX
Network and Communications Equipment
Uninterruptible Power System and Storage Devices
Intelligent monitoring or other 19 inch standard equipment

Quick Details

Place of Origin: Beijing, China	Height: 18U-47U
Brand Name: FINEN	Color: Black, Gray, White
HS Code: 8473309000	Thickness:2.0mm-1.5mm

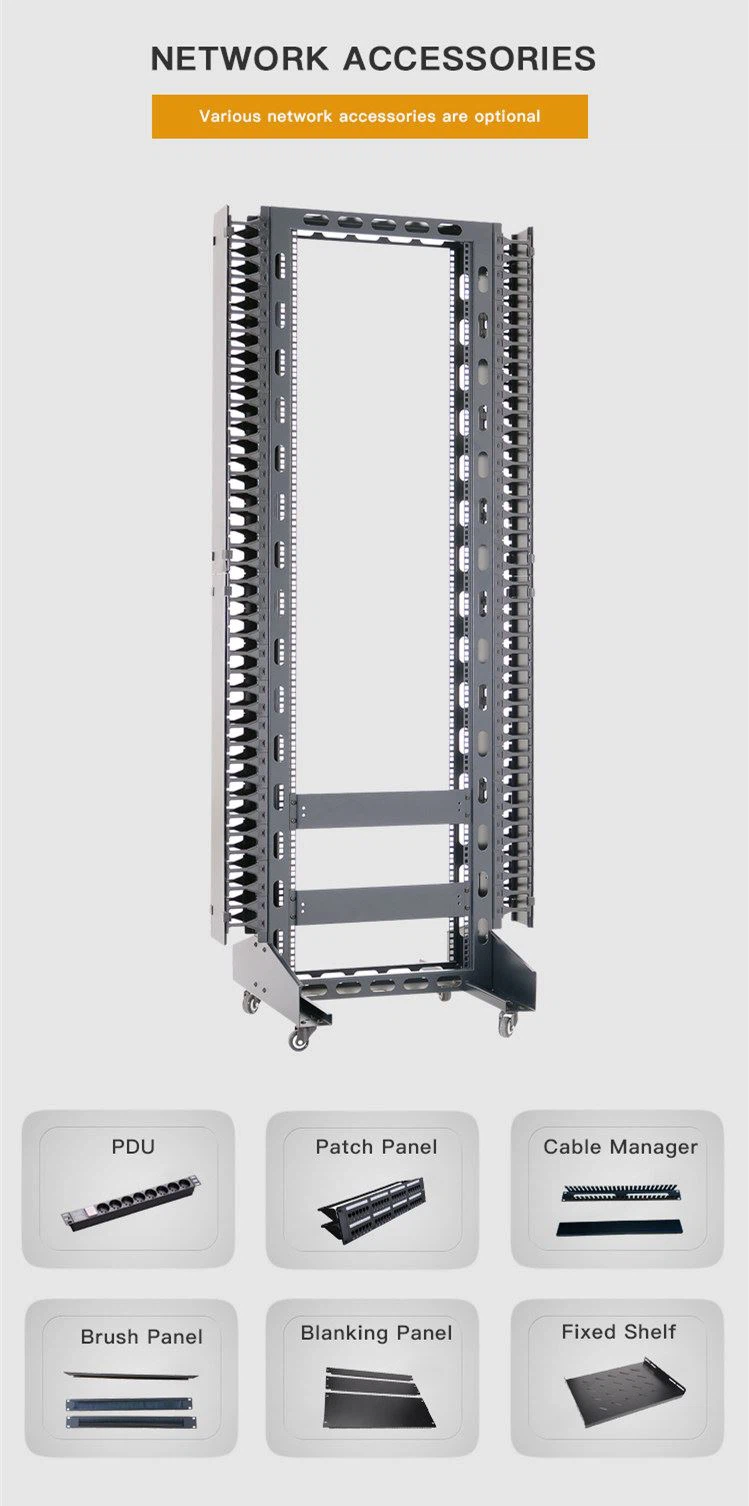

Model Number: AS Series	Optional Accessories: shelf, PDU, cable manager, and others
Material: SPCC Cold Rolled Steel	Surface Finish: Powder coating
Loading capacity: 150KG	Shipping: Sea, Air, Train, Truck
Type: 2-post open rack

Product Size:

Model No.	Capacity	Width	Height
Model No.	(U)	(mm)	(mm)
OR218	18	600	987
OR222	22	600	1165
OR227	27	600	1387
OR232	32	600	1610
OR237	37	600	1831
OR242	42	600	2053
OR247	47	600	2276
OR418	18	600	987
OR422	22	600	1165
OR427	27	600	1387
OR432	32	600	1610
OR437	37	600	1831
OR442	42	600	2053
OR447	47	600	2276
