Model Number: OR2 Series OR242
Standard:
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, DIN41494 part 7, GBIT3047.2-92 standard.

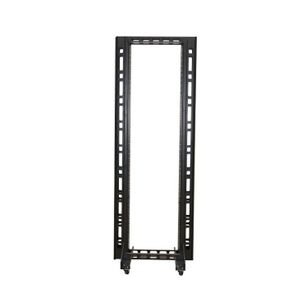

● 19'' Open rack with 2 posts
● Can be bolted directly to floor
● Have a small footprint that saves floor space
Quick Details
| Place of Origin: Beijing, China | Height: 18U 22U 27U 32U 37U 42U 47U |
| Brand Name: FINEN | Color: Black, Gray, White |
| HS Code: 8473309000 | Thickness:2.0mm-1.5mm |
| Model Number: AS Series | Optional Accessories: shelf, PDU, cable manager, and others |
| Material: High quality Cold-Rolled Steel plate | Surface Finish: Powder coating |
| Loading capacity: 150KG | Shipping: Sea, Air, Train, Truck |
| Type: 4-post open rack |
Product Size:
| Model No. | Capacity | Width | Height |
| (U) | (mm) | (mm) | |
| OR218 | 18 | 600 | 987 |
| OR222 | 22 | 600 | 1165 |
| OR227 | 27 | 600 | 1387 |
| OR232 | 32 | 600 | 1610 |
| OR237 | 37 | 600 | 1831 |
| OR242 | 42 | 600 | 2053 |
| OR247 | 47 | 600 | 2276 |
| OR418 | 18 | 600 | 987 |
| OR422 | 22 | 600 | 1165 |
| OR427 | 27 | 600 | 1387 |
| OR432 | 32 | 600 | 1610 |
| OR437 | 37 | 600 | 1831 |
| OR442 | 42 | 600 | 2053 |
| OR447 | 47 | 600 | 2276 |
Rack package contents
Frame×1pc
Base×2pc
Castors×4pcs
Vertical cable management×2/4pcs (Optional)
L-Rails are optional
Features
1. Easy Assembly and Fast Installation
2. Secure, firm and reliable
3. Easy to maintain equipment
4. Disassembly packing to save space and transport cost, easy to assemble
5. Certification: ISO 9001:2000 Ce Rohs
6. OEM/ODM service available
