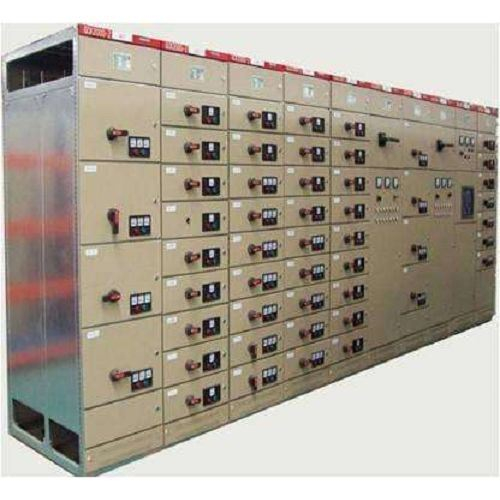

Model Number: GCS
Standard:
IEC60439-1、GB7251.1x JB/T9661
Quick Details
Cabinet specification: 600 / 800 / 1000 / 1200 wide; 2200 high; 600 / 800 / 1000 deep
Total height of functional unit: 1800mm
Rated frequency: 50-60Hz
Rated insulation voltage: 660V
Rated working voltage: 380V, 660V
Rated current of horizontal main busbar: 5000A
Rated current of vertical busbar: 1000A
Rated withstand current of horizontal main busbar: 100kA
Rated peak withstand current of horizontal main busbar: 200kA
Protection level:IP40
Advantage introduction
The main frame is made of aluminum-clad zinc plate steel, with high strength, good pretreatment technology and flexible installation
The main structure is made of 8MF type open section steel, and the side of the section steel has installation holes with module of 20 mm and diameter of 9.2 mm with module of 100 mm respectively. The functional rooms of the device are isolated from each other, and the compartments are divided into functional unit room, bus room and cable room. The function of each chamber is independent.
The main function is to switch, control and protect the electrical equipment in the process of power generation, transmission, distribution and transformation. The main components of the switch cabinet include circuit breaker, isolator, load switch, operating mechanism, transformer and various protections.
Widely used in power plants, petroleum, chemical industry, metallurgy, textile, high-rise buildings and other places.
